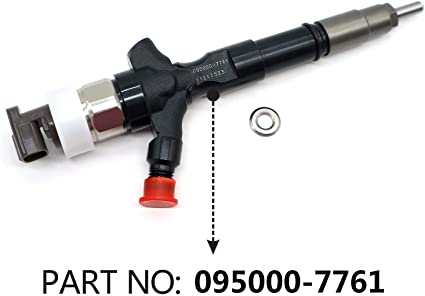

A common-rail diesel injector matched to the Denso injector sold under Toyota number 23670-30300 (Denso 095000-7761), for the 2.5-litre 2KD-FTV D-4D diesel in the Toyota Hilux and Hiace. The injector delivers fuel into the cylinder at very high pressure, several times per combustion stroke. When it wears, the 2KD-FTV typically becomes hard to start, idles roughly, smokes on start-up or under load, knocks, or loses power and economy.
Injectors are usually replaced as a set of four rather than one at a time. Common-rail injectors on this engine may need to be coded to the engine computer when they are changed, so fitting is best done by a diesel workshop.
What this fits
| Make | Model | Engine code |
|---|---|---|
| Toyota | Hilux (2.5 D-4D, including Hilux Vigo) | 2KD-FTV |
| Toyota | Hiace (2.5 D-4D) | 2KD-FTV |
Why there is no year column: we could not verify a year range for this injector to a standard we are prepared to print. Toyota used the 2KD-FTV for many years and changed its injectors more than once over that time, and injectors from different generations look very similar. Year coverage should be confirmed against the engine code stamped on your own vehicle’s engine, and against the number on your existing injector — not from the model year alone.
Cross-reference numbers
This injector is listed against the following part numbers. If your existing injector or your parts list shows either of these, this is the correct item.
23670-30300 · 095000-7761
The Toyota number 23670-0L010 is also associated with this injector, but it has been used across more than one version of the 2KD-FTV injector. If that is the number you have, contact us before ordering.
Making sure it is the right one
- Check the engine code. It is stamped on the engine block and usually shown on the vehicle’s registration papers. It must read 2KD-FTV — the 3.0-litre 1KD-FTV uses a different injector.
- Look at the top of your existing injector. The Denso number is printed on it: check it reads 095000-7761 (or 095000-7760), or that your parts invoice shows Toyota 23670-30300.
- If your number is different — for example a Denso number starting 095000-8 — do not assume this injector is interchangeable. Contact us first.
If you cannot find the number, contact us before ordering.
